POWER!

In a world dominated by outrageous forces, power is the name of the railroad game. At CSX, when you dial up horsepower, expect none other than General Electric's AC6000CW to answer the bell.

Story and Info by Joey Gonciarz & Bryan Jones
Photos by Joey Gonciarz




Screen shows vital engine and traction motor stats.

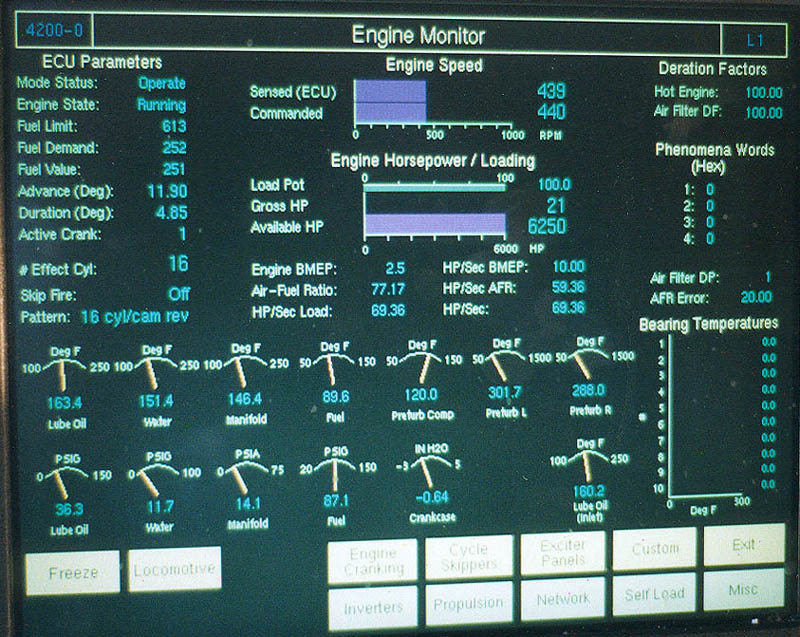

Screen shows vital engine tempatures and other items.



The Power that be!

Stretching 76 feet and weighing 216 tons, the AC6000CW is one of two American made diesel locomotives rated at 6,000 horsepower. Along with ElectroMotive's SD90MAC-H, these are the most powerful diesel locomotives on the market today. While units in decades past have reached 6000 hp or more, this was done with the use of 2 prime movers. The AC6000CW uses only one prime mover to reach its goal. Reaching the 6000 hp plateau has been quite a struggle for both the builders and the railroads that ordered these mammoth locomotives. First and foremost, new prime movers had to be developed to reach the 6000 hp goal as currently available designs were already operating at a peak horsepower in the 4000-5000 hp range. GE chose to form a partnership with Deutz MWM of Germany and design a new prime mover that would be capable of producing 6000 hp. This was in 1994, shortly after CSX ordered the first 3 AC6000CW's (classed CW60AC by CSX).

During 1995, GE released the first AC6000CW, GE #6000. This unit was called the "green monster" or "green machine" by many because of the green paint scheme the unit wore as well as the large size of the locomotive. During 1995, 13 additional AC6000CW's were constructed, 3 for CSX and 10 for Union Pacific. After testing within the confines of the GE facility in Erie, Pennsylvania, the units were released for service in September 1996. CSX #602 was the first to be delivered. To the surprise of railfans and company employees, a modified CSX paint scheme was introduced on #602. It included large CSX lettering on the hood, which was yellow, and outlined in blue. On the cab sides, a lightning bolt was stenciled at each end of the number. This gave the new units a very bold look and so far is only used on the AC6000CW's. During a ceremony at the B&O Railroad museum the #602 was christened "Spirit of Maryland". With this, the AC6000CW saga had begun on CSX.

Problems

Initially these 3 units were used in all types of service. They could be found hauling anything from unit coal trains, hotshot intermodal trains or a lowly manifest. More often than not, these units were operated with any other locomotives on the roster, though at times, the units would be paired together, and on a few occasions all 3 might be found together. All was not well in CSX land. The units soon began to earn themselves a bad reputation with crews and shop forces due to various mechanical problems.

The most severe problems were with the new HDL prime mover. There was a major vibration problem, which resulted from the engine block walls being too thin. This caused problems with the pair of turbochargers. GE had already redesigned the prime mover once because the original prime mover that was shipped from Germany was found to be too large and would not fit in the locomotive. This was because of a misunderstanding between GE and Deutz. These problems caused GE to push back production of the AC6000CW until 1997.

Resolution

GE worked and redesigned the HDL prime mover for the second time.The new version was dubbed the "stiff HDL" because it had thicker block walls than the original. Special braces were mounted on the turbochargers and this combination solved the vibration problem. Even after the vibration problems were solved, the HDL prime mover was still plagued with various problems. Despite the problems, testing and evaluation of the pre-production AC6000CW's continued. During early to mid 1998, CSX #600 was modified with new software and had its older hi-ad trucks swapped out for a GE's new and experimental "Generation 2" steerable trucks. This was done for part of an experiment, as GE wanted to maximize the tractive effort of the new locomotive. Sister unit #601 was fitted with the Generation 1 steerable trucks and the pair was tested in helper service. They spent 2 weeks in this service allowing GE personnel to obtain data that would possibly improve the performance of the units.

Production

About the same time that GE personnel were evaluating CSX #600 and 601, full-scale production on the AC6000CW began. The first production units to be delivered to a railroad were Union Pacific #7512 and 7513. They were delivered after extensive testing by GE and soon more units were delivered. The first of the CSX production units were not delivered until December.

On December 29, 1998 CSX took delivery of AC6000CW's #603 and 604. The units were nearly identical to the original CSX trio, but the new units rode on GE's Generation 1 steerable trucks. The units were only in service on CSX for 2 weeks when #604 suffered a blown prime mover, which placed it out of service. Not long after this, GE began to deliver more and more of the AC6000CW's to CSX. By June 1999, CSX #600-653 were in service throughout the system. During September 1999 production of the AC6000CW's resumed and as of this writing units up into the 670 series have been delivered. The entire order, which was for 114 units, should be completed in early 2000. When complete, CSX will have AC6000CW's #600-699 and 5000-5016.

The preferred power for CSX intermodal trains is high horsepower, high speed capability. Typically used in 2-unit sets, they have been seen with 3 or 4 60s in lead. GE's newest AC60s are equipped with cab signals which allow them to run in lead over former Conrail lines and other cab signal required mainlines. Older AC60s will be, or already have been, retrofitted with the same cab signal equipment..

Conclusion

With over 70 units delivered and more on the way, CSX holds title to the largest fleet of 6000 horsepower locomotives in service with UP being the only other American railroad to operate such units. BHP Iron Ore located in Austrailia became the 3rd owner of the AC6000CW with a total of 8 units. Though they are still working out various problems and bugs, CSX is sticking by GE with the new AC6000CW. While additional new locomotive orders haven't been placed by CSX for delivery in 2000 and beyond as of yet, additional AC6000CW's are not out of the question. As more of these units are delivered be sure to keep your eyes peeled because you may just find an AC6000CW coming to a CSX line near you!



Story and Info by Joey Gonciarz & Bryan Jones

Photos by Joey Gonciarz
