GG20B Rosters

UPY 2312

Type of Car: Diesel Multiple Unit (DMU) Double Decker cab car
Seating
Upper Level: 104
Lower Level: 61
Total Seating: 165
Dimensions
Length: 89 feet
Height: 19 feet, 10.5 inches
Weight: 92 tons (194,000 pounds)* — from earlier specs. May not be accurate.
Power
Motors: (2) Detroit Diesel Series 60 engines
Horsepower: 600 per motor @ 1,800 to 2,100 rpm (1,200 total Hp)
Transmission: Voith T212 BRE Hydrodynamic
Generator: Diesel, Deutz with Stadco 175kW 480v 3 phase
Features
Cab Style: Control Cab, flat faced with slant on top of second level
Kitchen/Galley: None
Ultradome Glass?: No, but glass does curve partially into roofline.
Restrooms: 1 (ADA accessible).
ADA Features: 1 ADA Restroom, 2 wheelchair lifts, wheelchair tiedowns in center of lower level.
History
Built: Summer 2007
Ran as: TRCX 706 (2007-present).



Notes: For 2006, South Florida Regional Transportation Agency has added a DMU-Trailer-DMU set, numbered TRCX 705, TRCX 7002 and TRCX 706.

The 706 should be identical to TRCX 703, the first double decker DMU ever built. That unit features seating for 165, with an ADA-accessible restroom and Colorado Railcar's first straight stairways. The 706 will also feature the slightly curved upper level windows that were found on the 703 and commuter coach 7001.

The new set of commuter units should be ready to go by summer of 2007.

Alaska 2000 Aurora

Photos:
Photo 5

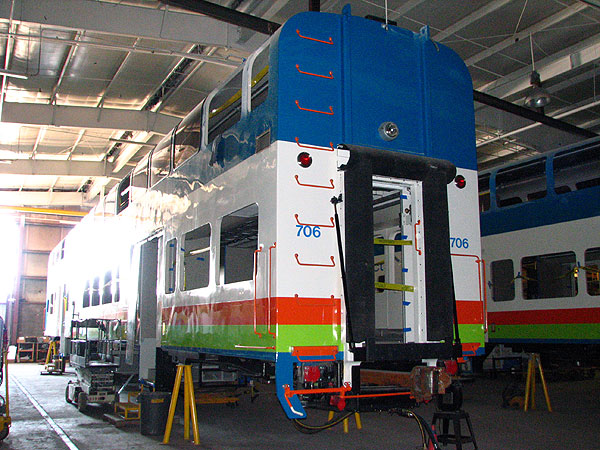

TRCX 706 under construction in Fort Lupton, CO. August 2006. Photo by Jody Moore. Click to enlarge.
Photo 5

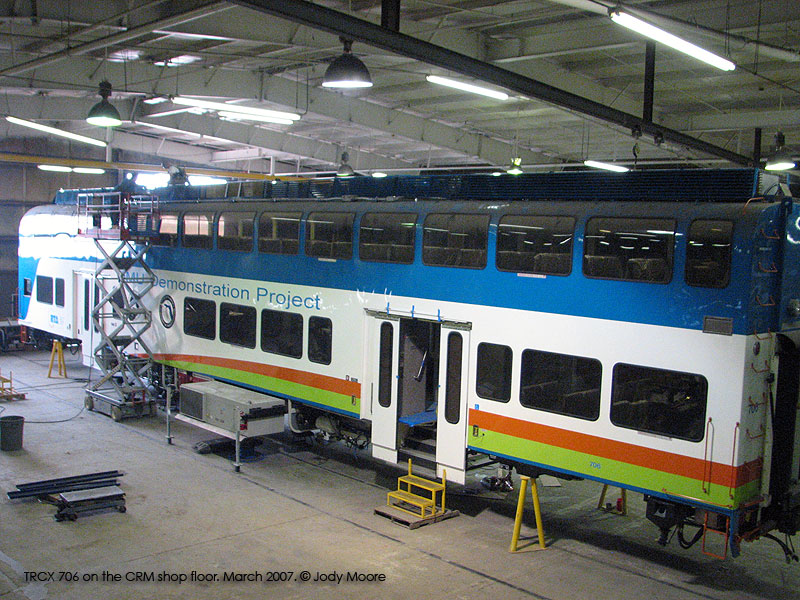

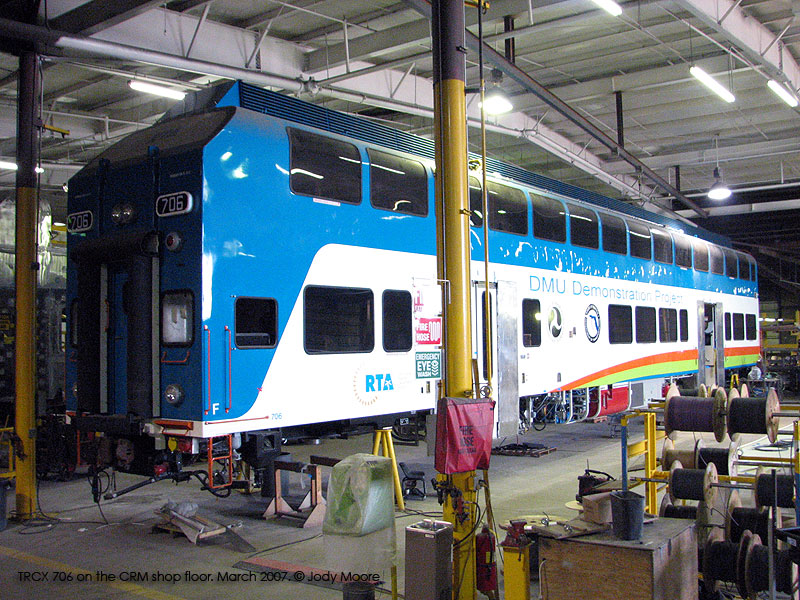

TRCX 706 under construction in Fort Lupton, CO. March 2007. Photo by Jody Moore. Click to enlarge.
Photo 5
TRCX 706 under construction in Fort Lupton, CO. March 2007. Photo by Jody Moore. Click to enlarge.

For corrections, questions or to contribute photos, please e-mail me at: potb101@aim.com. Thanks!
