The Milwaukee Road: 100 Years of Locomotive Progress, page 4

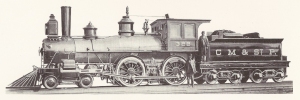

No. 322

Built in 1889 by the Chicago, Milwaukee and St. Paul Railway Company at its Milwaukee Shops. Renumbered 800 in 1899; No. 423 in 1912; scrapped in 1919.


Weight on Drivers		54,000 Lbs.
Total Weight-Locomotive		86,000 Lbs.
Steam Pressure		160 Lbs.
Driving Wheel Diameter		62 inches
Cylinder Size		16 in. x 24 in.
Tractive Effort		13,400 Lbs.
Length Overall		55 ft. 3 in.

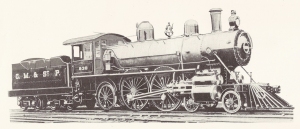

No. 838		Class A1

Built in 1896 by Baldwin Locomotive Works. Renumbered 400 in 1899; No. 900 in 1901; No. 3000 in 1912; scrapped in 1934.

Driving Wheel Diameter		78 inches
Cylinder Size	13 in. x 22 in. x 26 in.
Boiler Pressure		200 Lbs.
Weight on Drivers		80,400 Lbs.
Total Weight-Locomotive	150,400 Lbs.
Tractive Effort		15,590 Lbs.
