The Milwaukee Road: 100 Years of Locomotive Progress, page 13

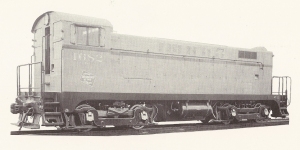

No. 1682		Class DE-10

A 1000 h.p. switching Locomotive built in 1942 by Baldwin Locomotive Works.

Driving Wheel Diameter			40 inches
Total Weight			237,580 Lbs.
Engine Rating	1000 b.h.p. at 625 r.p.m.
Length Overall			48 ft. 10 in.

No. 262	Class S3

Built in 1944 by American Locomotive Company.

Cylinder Size		26 in. x 32 in.
Driving Wheel Diameter		74 inches
Boiler Pressure		250 Lbs.
Heating Surface		4473 square feet
Tender Water Capacity		20,000 gallons
Tender Coal Capacity		25 tons
Tractive Effort		62,119 Lbs.
Length Overall		109 ft. 7-3/4 in.
