NZR Stores Branch
Introduced: 1948
Number in Class: 1
Locomotive Specifications
|
|
| Engine Weight: 24.0 tons |
Tender Weight: | Total Weight: 24.0 tons | Adhesive Weight: 24.0 tons |
| Length over Buffers: 29' 7" |
Total Wheelbase: 21' 7" |
Engine Wheelbase: 21' 7" | Coupled Wheelbase: 46½" |
| Tender Wheelbase: | Driver Wheel Dia.: 30" | Cylinders HP: Two - 11" x 10" |
Cylinders LP: |
| Grate Area: | Evaporative Area: |
Superheated Area: |
Working Pressure: 160 psig |
| Tractive Effort: |
Coal Capacity: | Oil Capacity: | Water Capacity: |

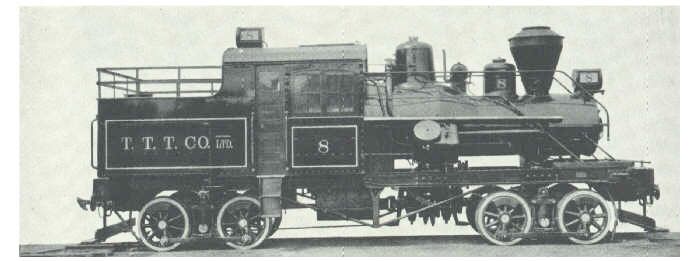

| Remarks: This Heisler first saw service with the Taupo Totara Timber Co. at Mokai when it was bought new in 1921. It was used to haul timber from the bush around Mokai where it was delivered to the main Taupo Totara line for onwards delivery to Putaruru by means of the company's 2-4-4-2 Alco Mallet. When the line was closed in 1947, the Heisler was taken over by the NZR and moved to their Stores Branch bush operation at Mamaku, near Rotorua,where it was in service until 1952. |
