Rayners Lane Signal Cabin

Signal Diagram - detail

Signal Diagram - detail

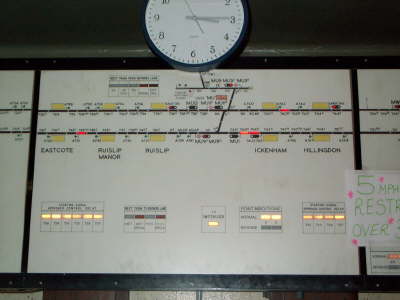

This part of the diagram covers the area between Eastcote and Hillingdon, including the siding at Ruislip.
The siding at Ruislip also provides access to West Ruislip depot.
